#include <response_capillary_related.h>

Inheritance diagram for FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >:

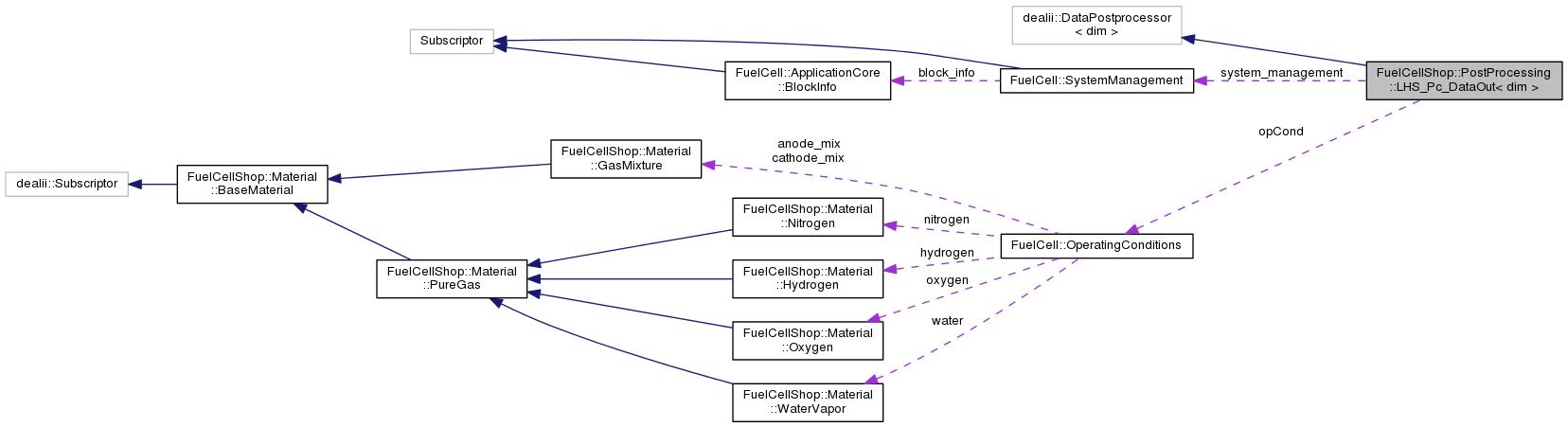

Collaboration diagram for FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >:

Constructors, destructor, and initalization
std::vector< boost::shared_ptr < FuelCellShop::Layer::PorousLayer < dim > > >	porous_layers
	Pointer to catalyst layer object. More...

FuelCell::SystemManagement *	system_management
	Pointer to system management. More...

FuelCell::OperatingConditions *	opCond
	Pointer to operating conditions class. More...

	LHS_Pc_DataOut (FuelCell::SystemManagement , std::vector< boost::shared_ptr< FuelCellShop::Layer::PorousLayer< dim > > >, FuelCell::OperatingConditions )
	Constructor of our class. More...

virtual	~LHS_Pc_DataOut ()
	Destructor. More...

virtual std::vector< std::string >	get_names () const
	Function that provides the names of the output variables. More...

virtual std::vector < DataComponentInterpretation::DataComponentInterpretation >	get_data_component_interpretation () const
	Function that states if the output functions are a scalar or a vector. More...

virtual UpdateFlags	get_needed_update_flags () const
	Flags to be updated in each cell when computing the solution. More...

virtual void	compute_derived_quantities_vector (const std::vector< Vector< double > > &uh, const std::vector< std::vector< Tensor< 1, dim > > > &duh, const std::vector< std::vector< Tensor< 2, dim > > > &, const std::vector< Point< dim > > &, const std::vector< Point< dim > > &, const types::material_id &mat_id, std::vector< Vector< double > > &computed_quantities) const
	Member function used to calculate the current density. More...

Constructor & Destructor Documentation

template<int dim>

FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::LHS_Pc_DataOut	(	FuelCell::SystemManagement *	,
		std::vector< boost::shared_ptr< FuelCellShop::Layer::PorousLayer< dim > > >	,
		FuelCell::OperatingConditions *
	)

Constructor of our class.

template<int dim>

virtual FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::~LHS_Pc_DataOut ( )

inlinevirtual

Destructor.

Member Function Documentation

template<int dim>

virtual void FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::compute_derived_quantities_vector	(	const std::vector< Vector< double > > &	uh,
		const std::vector< std::vector< Tensor< 1, dim > > > &	duh,
		const std::vector< std::vector< Tensor< 2, dim > > > &	,
		const std::vector< Point< dim > > &	,
		const std::vector< Point< dim > > &	,
		const types::material_id &	mat_id,
		std::vector< Vector< double > > &	computed_quantities
	)		const

virtual

Member function used to calculate the current density.

Its inputs are

a vector representing values of the function (which is here vector-valued) representing the data vector given to DataOut::add_data_vector, evaluated at all evaluation points where we generate output
a tensor objects representing the first derivative (not used and not given properly since in the constructor we specified that only solution values need to be updated)

The derived quantities are returned in the computed_quantities vector.

Remember that this function may only use data for which the respective update flag is specified by either the constructor or get_needed_update_flags.

template<int dim>

virtual std::vector<DataComponentInterpretation::DataComponentInterpretation> FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::get_data_component_interpretation ( ) const

virtual

Function that states if the output functions are a scalar or a vector.

template<int dim>

virtual std::vector<std::string> FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::get_names ( ) const

virtual

Function that provides the names of the output variables.

In this case, current density, overpotential, effectiveness, and oxygen coverages (if applicable). The latter is set to one if the model is macro-homogeneous.

template<int dim>

virtual UpdateFlags FuelCellShop::PostProcessing::LHS_Pc_DataOut< dim >::get_needed_update_flags ( ) const

virtual

Flags to be updated in each cell when computing the solution.
